Fiberglass Cable Fish Rod Transmission Line Stringing Tools Duct Laying Tool

Changshu Xinya Machinery Manufacturing Co., Ltd.

Fiberglass Cable Fish Rod Transmission Line Stringing Tools Duct Laying Tool

Brand Name : XINYA

Model Number : P

Certification : ISO

Place of Origin : Jiangsu,China

MOQ : 5 sets

Price : get latest price

Payment Terms : L/C, T/T, , Western Union

Supply Ability : 100sets/day

Delivery Time : 10-15 workdays after payment

Packaging Details : Carton

Application : Cable Pulling

Rod Diameter : 4-16mm

Material : Fiberglass Reinforced Plastic

Length of pulling rod : 50-300M

Type : Cable Rod

Selling point : Cable Laying Equipment

MOQ : 5 sets

Item : Fiberglass Cable Fish Rod Transmission Line Stringing Tools Duct Laying Tool

Contact Now

Fiberglass Cable Fish Rod Transmission Line Stringing Tools Duct Laying Tool

Brief Introduction

Fiberglass duct rodders or push rodders and commonly called python rod by its nature passing through

under ground ducts by ups, down negotiating the duct curvature thus very convenient to pull the cables,

wires inside the duct , also it can be used to locate the duct block or damage portion identifications.

it has high safetyaspects to use underground applications because of its non conductivity of electricity,

sets a major safety to site workers .

It has been built with rigid sturdy steel tubular fabrication for easy usage at site and can be self

coiled in the tubular frame and easily roll like trolley on ground by itswheels fitted at bottom .

The ducts rodders normally comes in various diameters from 4.5 mm to 18 mm as per ground applications.

Normally 10 mm dia FRP rodders used for pulling, cleaning and locating blocks in Fiber optic Cable network applications.

Application

1. Used to install pulling ropes and winch ropes into ducts,ready for cable pulling operations.

2. Available push pull rodder
3. With cable roller
4. Lightweight and non-conductive

Features

1. Strong non-conductive fiberglass rod construction

2. Stainless steel drawing head

3. For longer conduit runs and underground duct

4. Rugged tubular steel reel with adjustable position.

5. Feed device allows rod to feed out or be wound back onto reel with easy pushi or pull of rod

Technical Data

Fibreglass Duct Rod.pdf

Specification

Rod Diameter (mm)

Φ4,Φ4.5,Φ5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16

Rod Length (m)

30~500

Frame Spec.(mm)

1300x450x1330,1200x420x1220,980x350x1000,680x240x700, etc

Wheel Diameter(mm)

300mm

Wall thickness of Metal Frame

2.2mm

Color

blue, yellow, red, white etc

Material

Rod Inner

Extruded by fiber glass and high strength resin at high temperature

Rod Outer

High Density polyethylene coating

Iron Frame

Steel with high-temperature sprayed plastic or Spray coating

Wheel

rubber

Brake

Yes

Drawing head

copper

Physical Characters

Density

55g/m

Working temperature

-40°C to +80°C

Breaking tension

100kg

Bending Radius

295mm

Technology

Pultrusion

Packaging

Inside

plastic woven strip wind around the frame

Outside

Wooden pallet and Wooden box

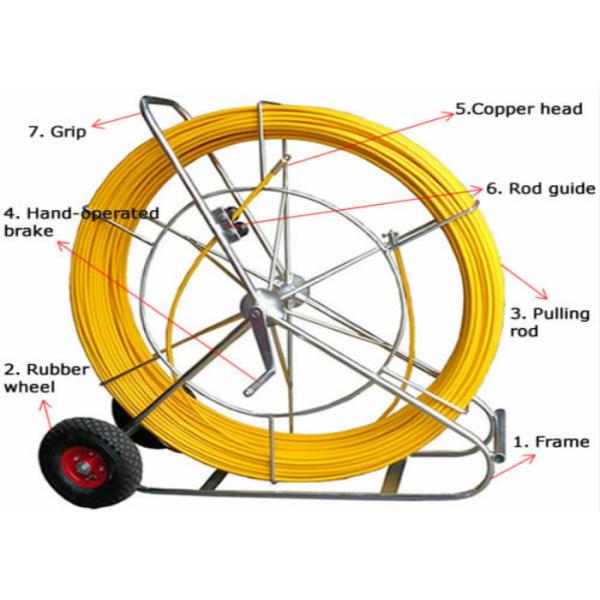

Structure

Fiberglass Cable Fish Rod Transmission Line Stringing Tools Duct Laying Tool

Size

Fiberglass Cable Fish Rod Transmission Line Stringing Tools Duct Laying Tool

Application

Fiberglass Cable Fish Rod Transmission Line Stringing Tools Duct Laying Tool
